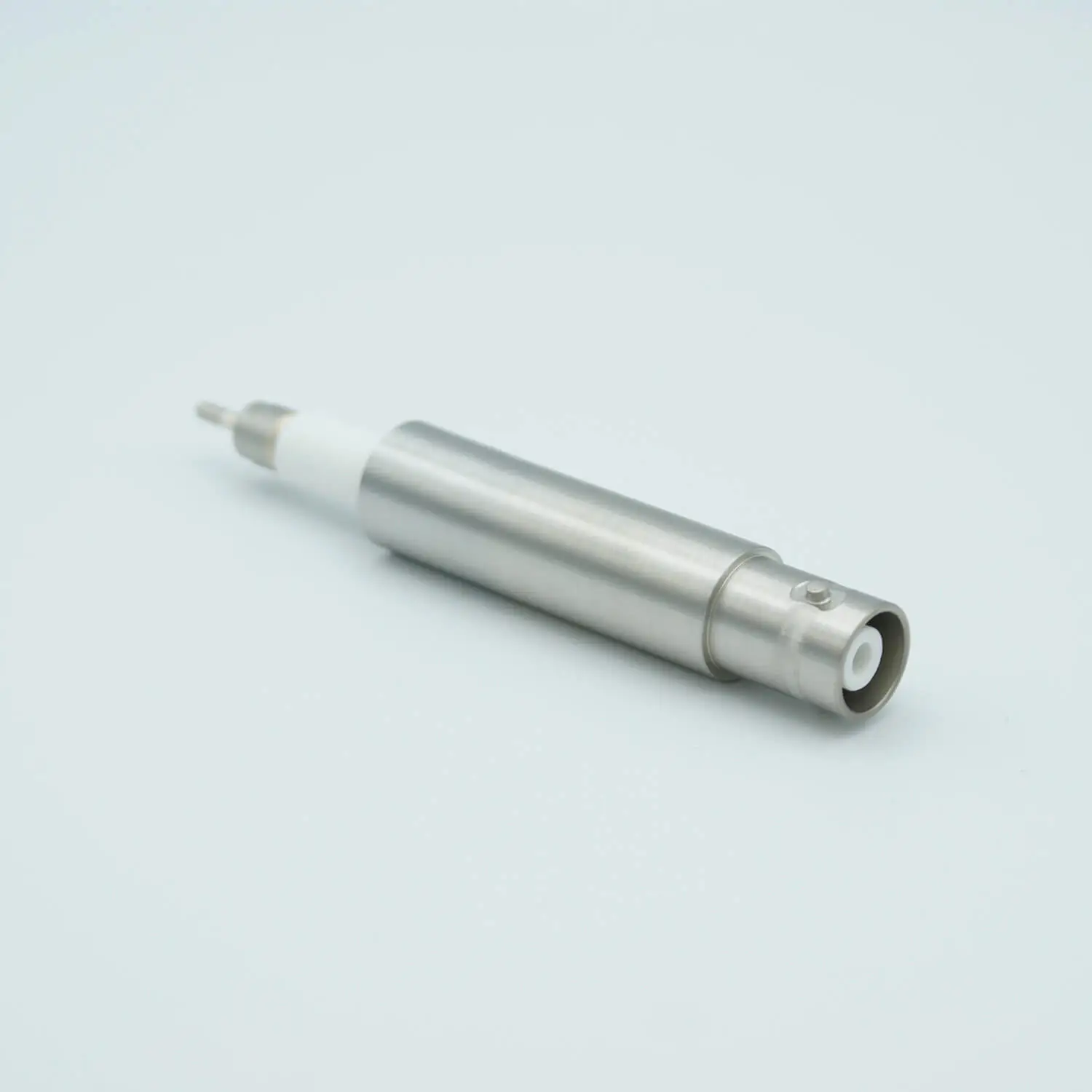

SHV-20 Coaxial Feedthrough, 1 Pin, Grounded Shield, Exposed Insulator, 0.62" Dia SS Weld Adapter

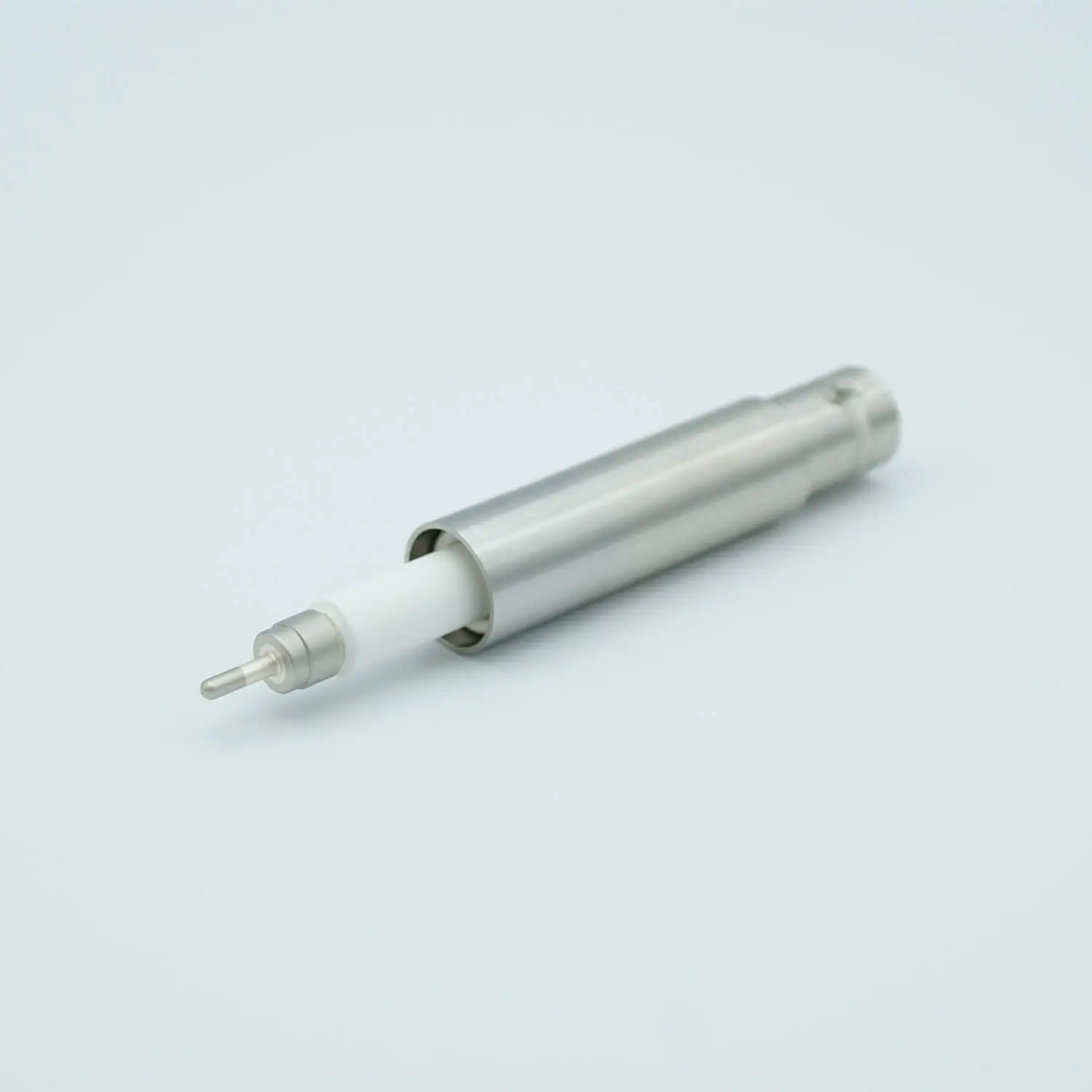

SHV-20 Coaxial Feedthrough, 1 Pin, Grounded Shield, Exposed Insulator, 0.62" Dia SS Weld Adapter - Image 2

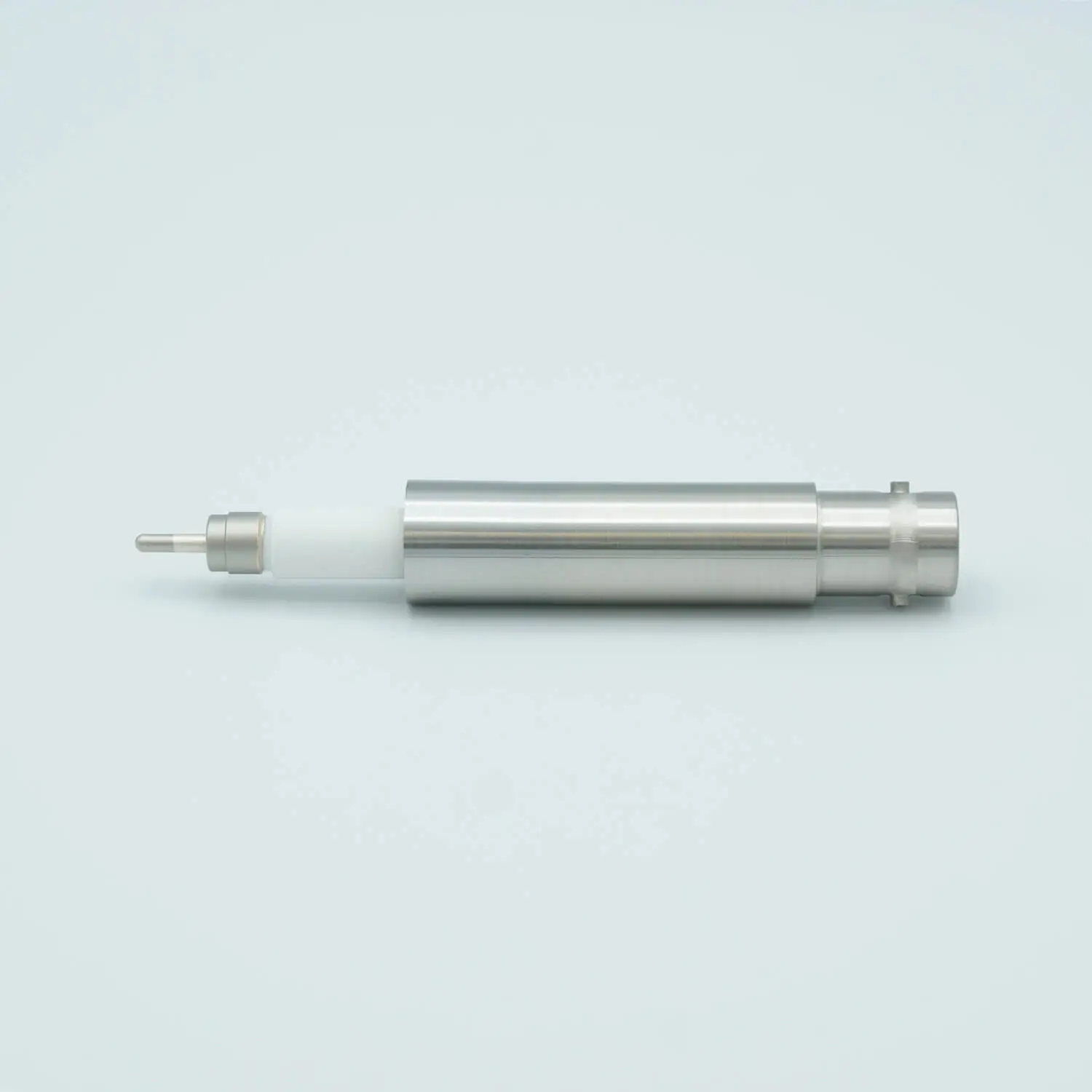

SHV-20 Coaxial Feedthrough, 1 Pin, Grounded Shield, Exposed Insulator, 0.62" Dia SS Weld Adapter - Image 3

SHV-20 Coaxial Feedthrough, 1 Pin, Grounded Shield, Exposed Insulator, 0.62″ Dia SS Weld Adapter

SKU: A0702-1-W

A0702-1-W | SHV-20 Coaxial Feedthrough, 1 Pin, Grounded Shield, Exposed Insulator, 0.62″ Dia SS Weld Adapter

$225.99

Description

SHV-20 Coaxial Feedthrough, 1 Pin, Grounded Shield, Exposed Insulator, 0.62″ Dia SS Weld Adapter

Safe High Voltage Connector (SHV) with Recessed Contact, Bayonet Style Connection, Air-side Connector Included, Grounded Shield, UHV Compatible

Additional information

Weight	0.19 lbs
Dimensions	8 × 1.5 × 2 in
Connector Included	Yes
Impedance	Non-Constant
Mount	Weldable
Shield	Grounded
Single or Double Ended	Single
Voltage Rating	20 KV

Resources + Documents

A0702
Type: PDF

A0702-1-W
Type: step
